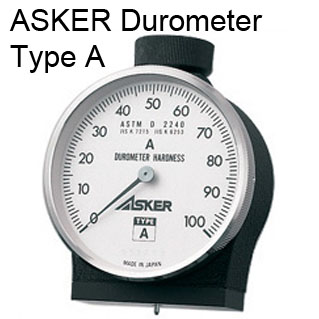

ASKER Durometer Type A
No.:Type A
Brand:
Manufacturer:JAPAN
Weight:0.00Kg
Price:628USD
Sorry, this product currently is out of stock, please send a
email to us about the delivery time. We will reply to you as soon as possible.
＊Price per piece.
＊Weight per piece.
＊If you can't order this item online, you can send a inquiry to us by email.
＊Join HAKUMA CLUB to receive member price and other member benefits.
share to :
Description:
New Asker Durometer rubber / plastic hardness tester Asker A
Description:
The Type A Durometer for general rubber (Normal hardness )
The mainstream product used world-wide for measuring various kinds of rubbers, and specified in the standards of JIS K 6253, ASTM D 2240, ISO 7619, DIN53505, etc.
The Pressure foot in contact with the specimen is 44mm in width and 18mm in depth, wide enough to ensure accurate measurement.
Another type of durometer with an 18mm diameter pressure foot is available. In addition, the Longer Pressure Foot Type (AL Type) is applicable for measurement of narrow or concave specimens .
Type A Durometer (ASKER A type), conforming to JIS K 6235 is the most popular type of durometer for measuring rubber hardness.
However, verification is recommended because a significant difference is estimated to be the largest when a durometer indicates measurement values from 10 to 90 points.
For hard specimens for which Type A Durometer readings indicate more than 90 points, measurements should be undertaken using the Type D Durometer (ASKER D type). However, for soft specimens with measurements of less than 20 points, the ASKER C type or Type E Durometer (ASKER E type) should be used. The most important consideration in using durometers is to select the correct type for purposes of measurement according to the specimen.
Packing List:
1 x Asker A Durometer
1 x Carry case
1 x Instruction Manual
Standard Factory Package

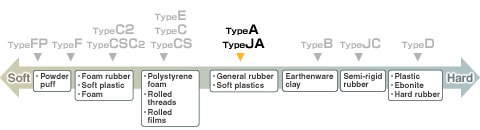

Hardness Tester Selection Chart
Our product line consists of various types of durometers applicable to specific materials
as indicated in the chart above.
Type A Durometer (ASKER A type), conforming to JIS K 6235 is the most popular type of durometer for measuring rubber hardness.
However, verification is recommended because a significant difference is estimated to be the largest when a durometer indicates measurement values from 10 to 90 points.
For hard specimens for which Type A Durometer readings indicate more than 90 points, measurements should be undertaken using the Type D Durometer (ASKER D type). However, for soft specimens with measurements of less than 20 points, the ASKER C type or Type E Durometer (ASKER E type) should be used. The most important consideration in using durometers is to select the correct type for purposes of measurement according to the specimen.
|
|
 |
|
| Standards |
|
JIS K 6253
JIS K 7215
ASTM D 2240
ISO 7619
ISO 868
DIN 53505 | |
|
| Indication range |
|
0 point - 100 point (262 degree dial scale) | |
|
| Minimum indication |
|
1 point (Accuracy : ±1 point) | |
|
| Indentor Design (mm) |
|
Height: 2.50 35°Angle Flat Cone Point 0.79 Dia. | |
|
| Spring Forces [mN(g)] |
|
| |
|
| Central hole of diameter of Pressure foot |
|
Φ3 | |
|
Pressure foot
Dimension (mm) |
|
44×18(Rectangular) | |
|

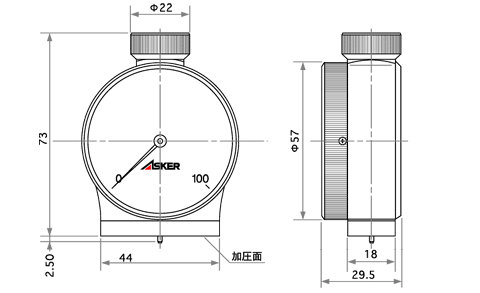

| Outer Dimension (mm) |
|
Approx. Width 57×Depth 30×Height 76 | |
|
| Weight (g) |
|
200 | |
|
| Application |
|
general rubber, soft plastic | |
|
|
|
|
|
 |
|
|
Two-pointer type (max-hand and active hand) of Rubber Hardness Tester
The stationary set hand (max-hand) makes the maximum value easier to read and allows the creep characteristics of a specimen.
Accurate measurement is made possible for specimens* for which stress relaxation occurs over time or for specimens for which it is difficult to take readings from the front.
*Materials for which the reading decreases immediately after the indentor has been pressed against the surface. | |
 |
 |
|
|
Constant Loader for Durometer
| · |
Constant loarder assures uniform test pressure eliminating false readings due to differences between operators in measuring by hand. |
| · |
High accuracy and repeatability of the hardness readings are assured by the flexible joint function. | | |
|
 |
|
|
Indentor Extension Tester
| · |
The gauge to check the indentor height on a durometer and the reading indicator mechanism. |
| · |
Inspection is conducted at 2, 50, and 100 points respectively. | | |
|
 |
|
|
Load Tester for Hardness Tester
| · |
Tester to check load properties of the spring on a durometer |
| · |
Inspection is conducted at 2, 50, and 75 points respectively. | | |
|
