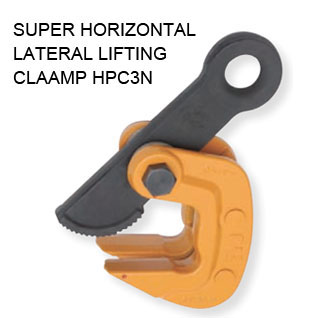

SUPER HORIZONTAL LATERAL LIFTING CLAMP HPC3N
No.:HPC3N
Brand:
SUPER
Manufacturer:JAPAN
Weight:8.36Kg
Price:265USD
Sorry, this product currently is out of stock, please send a
email to us about the delivery time. We will reply to you as soon as possible.
＊Price per piece.
＊Weight per piece.
＊If you can't order this item online, you can send a inquiry to us by email.
＊Join HAKUMA CLUB to receive member price and other member benefits.
share to :
Description:
Clamp for lateral(horizontal)lifting and handling of rigid steel plates,"H" and "L"beams.
FEATURES
The spring-loaded tightening lock mechanism assures a positive initial clamping force.
The clamping force increases in proportion with the weight of the load.
The main body and the shackle are made of die-forged special alloy steels,which are optimally tempered for maximum strength and durability.
High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
The main body is a baked-on finish.
The clamp body can be easily cheched for deformation by measuring the safety points.
SPECIFICATIONS
| Item No. |
Rated capacity(ton) |
Jaw opening(mm) |
L(MAX) |
B |
b |
H1 |
H2 |
T |
t |
D |
d |
S.P.
(Distance between safety points) |
Weight(kg) |
| HPC 3N |
3 |
0-60 |
329 |
150 |
88 |
181.0 |
51 |
80 |
22 |
82 |
36 |
90 |
7.6 |
