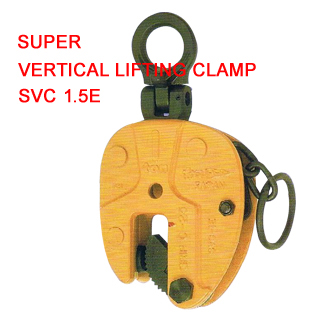

■SUPER VERTICAL LIFTNG CLAMP(Handle type with Universal shackle) SVC1.5E
Lightweight clamp primarily designed for the vertical lifting of steel plates. The unique design of this
clamp also makes it possible for lifting work piece to any directions.
■FEATURES
●Thess spring-loaded tightening lock mechabism assures a positive inital clamping force.

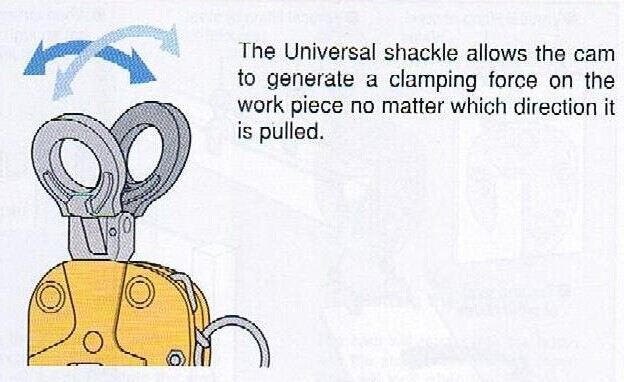

●The universal shackle allows the cam to generate a clamping force on the work piece no matter
which direction it is pulled.
●The clamping force increases in proportion to the weight of the load.
●The main body and the shackle are made of die-forged special alloy steels,which are optimally tempered for
maximum strength and durability.
●High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
●The main body is a baked-on finish.
■SPECIFICATIONS
| Item No. |
Rated capacity(ton) |
Jaw opening(mm) |
Net weight(kg) |
Remarks |
| SVC 1.5E |
1.5 |
0～28 |
5.5 |
|

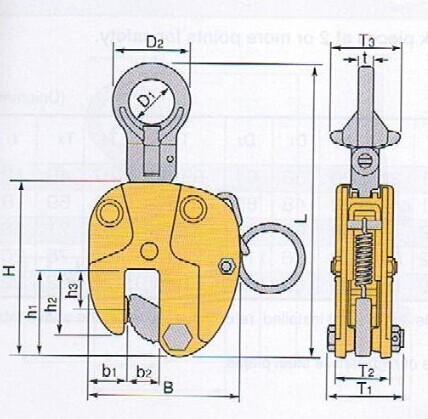

■DIMENSIONS TABLE
| Item |
L |
H |
h1 |
h2 |
h3 |
B |
b1 |
b2 |
D1 |
D2 |
T1 |
T2 |
T3 |
t |
| SVC 1.5E |
254～290 |
174 |
88 |
67 |
42 |
150 |
39 |
33 |
45 |
76 |
74 |
55 |
67 |
14 | |
